Brand
Fabricante SYSTIMAX Cód. GP Cabling 30534
NCM 85444900 CST Part. Nº 760168377
Sob Consulta
Cotação por Metro

Sob Consulta

Documentos

DESCRIÇÃO

Construction Materials
Jacket Material Low Smoke Zero Halogen (LSZH)
Conductor Material Bare copper
Drain Wire Material Tinned copper
Insulation Material Polyolefin
Separator Material Polyolefin
Shield (Tape) Material Polyester/Aluminum shield

Dimensions
Cable Length 305 m | 1000 ft
Cable Weight 35.15 lb/kft
Diameter Over Jacket 7.518 mm | 0.296 in
Jacket Thickness 0.508 mm | 0.020 in

Electrical Specifications
ANSI/TIA Category 6A
dc Resistance Unbalance, maximum 4 %
dc Resistance, maximum 8.00 ohms/100 m
Mutual Capacitance 5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 68 %
Operating Frequency, maximum 500 MHz
Operating Voltage, maximum 80 V
Transmission Standards ANSI/TIA-568-C.2

Environmental Specifications
Environmental Space Low Smoke Zero Halogen (LSZH)
Smoke Test Method IEC 61034-2
Acid Gas Test Method IEC 60754-2
CPR Cable Classifications EuroClass Dca | s2 | d2 | a1
Flame Test Method IEC 60332-3-22
Installation Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)

General Specifications

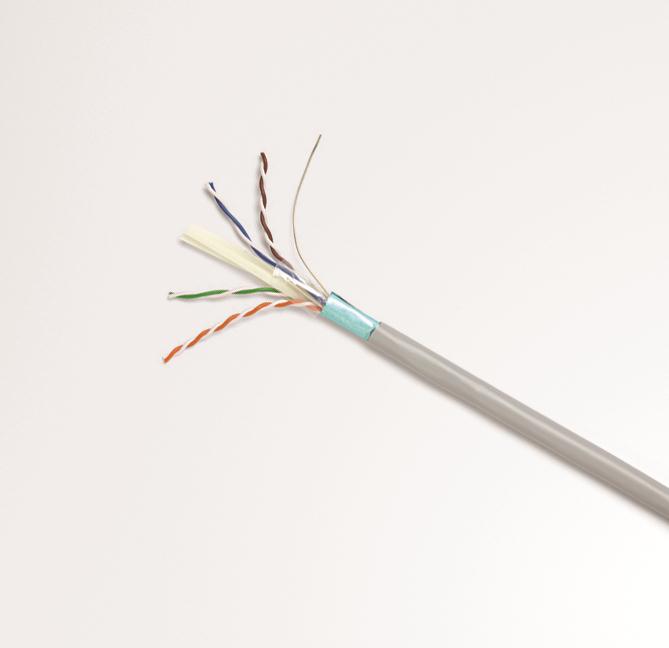

Cable Type F/UTP (shielded)
Pairs, quantity 4
Cable Component Type Horizontal
Packaging Type Reel
Brand GigaSPEED X10D® | SYSTIMAX®
Jacket Color Slate
Product Number 3291B
Conductor Gauge, singles 23 AWG
Conductor Type, singles Solid
Conductors, quantity 8
Drain Wire Gauge 24 AWG
Drain Wire Type Solid
Separator Type Isolator

Mechanical Specifications
Pulling Tension, maximum 11 kg | 25 lb
