GP Cabling | Produtos | 50906 — CD.DUPL.TERASPE...

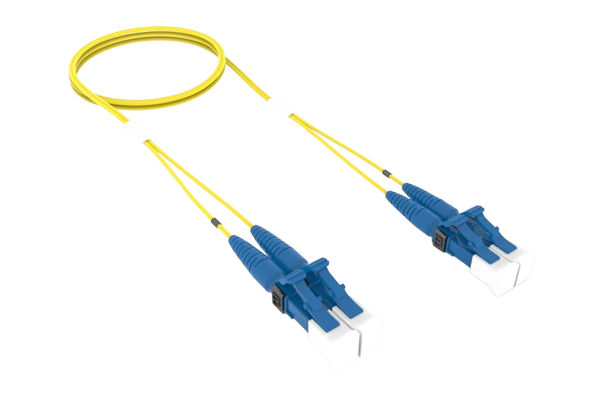

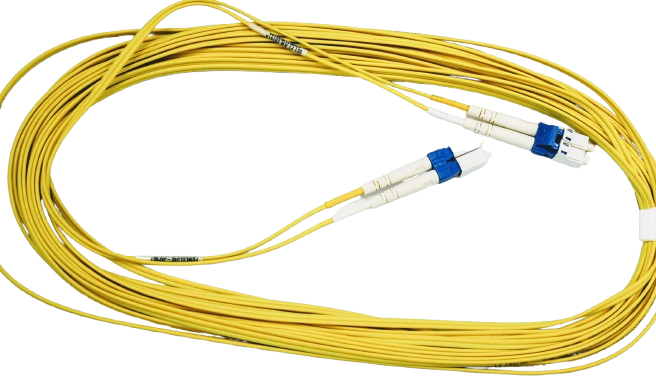

CORDÃO DUPLEX TERASPEED LC/LC 40FT - 12,2M

Fabricante: SYSTIMAX
Cód. GP Cabling: 50906
NCM: 85447010
Part. Number: FDWLCLC42-JXF040

Sob Consulta

Documentos

50906.pdf

Saiba mais sobre o produto:

Construction Materials
Fiber Type G.652.D and G.657.A1 , TeraSPEED® | OS2
Total Fibers, quantity 2

Dimensions
Cord Length, maximum 325 ft | 99 m
Cord Length, minimum 2 ft | 1 m
Diameter Over Jacket 1.60 mm | 0.06 in
Ordering Note For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length
may vary based on cable configuration

Environmental Specifications
Environmental Space Plenum
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)

General Specifications
Color, connector A Blue
Color, connector B Blue
Construction Type Duplex patch cord
Interface, connector A LC
Interface, connector B LC
Interface Feature, connector A Standard
Interface Feature, connector B Standard

Mechanical Specifications
Cable Retention Strength, maximum 4.40 lb @ 90 °
11.24 lb @ 0 °
